In modern interior architecture and construction, false ceilings hold a special place as an effective solution for covering utilities, enhancing visual aesthetics, providing sound and thermal insulation, and even improving building safety. Two commonly used types of false ceilings in Iran are gypsum tile ceilings and Armstrong ceilings, each with its own distinct features, advantages, and disadvantages. This article provides a detailed comparison of these two false ceiling types, helping you make an informed and project-appropriate decision.
Definition and Structure of Gypsum Tile False Ceilings

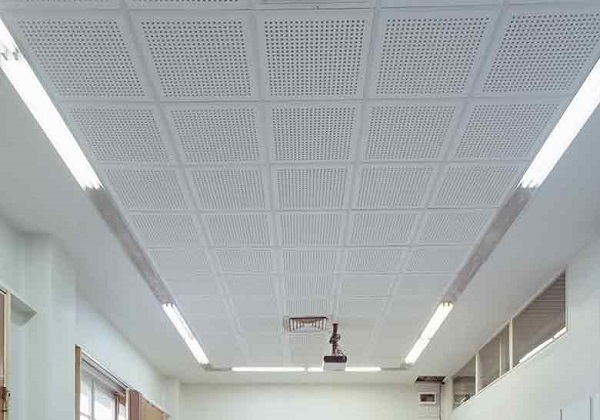

Gypsum tile false ceilings are made of tiles with standard dimensions of 60x60 cm, which are usually available in simple, patterned, or acoustic designs. These tiles can be coated with various materials such as PVC or aluminum or come pre-painted. Gypsum tiles are extremely popular in residential, office, and commercial projects due to their lightweight nature, easy installation, and quick replaceability. The base structure of these ceilings is made with a grid frame, allowing the tiles to be easily placed within it.
Key features of gypsum tile false ceilings include:
- Lightweight, reducing the building’s dead load
- Quick and easy installation without the need for traditional plastering
- Ability to integrate hidden lighting and easy access to utilities
- Variety of designs, colors, and finishes
- Use of acoustic tiles for sound absorption
- Good moisture resistance (with proper coatings)
- Recyclability and environmental friendliness
- Cost-effective in terms of installation and maintenance
Introduction to Armstrong False Ceilings
Armstrong false ceilings also feature a grid structure, where tiles are placed within T-shaped framework systems. This system allows the use of various materials for the tiles, including gypsum, mineral, metal, PVC, and even wood. Armstrong ceilings are widely used in office, commercial, healthcare, and educational spaces due to their flexibility, fast installation, and easy tile replacement. The space above the Armstrong ceiling is also ideal for running utilities and installing acoustic and thermal insulation.
Prominent features of Armstrong false ceilings include:
- Quick and easy tile installation without the need for screws or joint compound
- Easy replacement of damaged tiles
- Availability of tiles made from a wide range of materials
- Suitable for diverse spaces, including offices, commercial areas, and medical facilities
- Provision for placing sound and thermal insulation layers in the ceiling cavity
- Variety of designs and colors depending on the tile choice
- Good moisture resistance (in specific models)
- Cost-effective installation and easy maintenance
Technical and Execution Performance Comparison
Installation Speed and Ease
Both systems are highly efficient in terms of installation speed and ease of execution. Gypsum and Armstrong tiles can be easily installed within grid frames, requiring no complex or time-consuming operations. This leads to reduced project timelines and labor costs, accelerating the completion of the project.
Aesthetics and Design Diversity
Gypsum tiles are available in simple, patterned, and acoustic designs, offering a wide variety of styles and colors that can harmonize with various interior decors. PVC and aluminum coatings add to the aesthetic appeal and durability of the ceiling. On the other hand, Armstrong ceilings provide high customization possibilities due to the variety of tile materials available. They can be aligned with both modern and classic styles, and the use of geometric, abstract, or artistic designs can turn the ceiling into a work of art.
Acoustic Performance
Acoustic gypsum tiles are known for their high sound absorption due to their special structure and the option to install rock wool behind the tiles. They are ideal for spaces such as conference rooms, cinemas, and office spaces. Armstrong tiles are also available in acoustic models, offering varying levels of acoustic performance depending on the material and insulation type used. Both systems can enhance the acoustic quality of spaces, absorb unwanted sounds, and create a quieter environment.
Moisture Resistance and Environmental Conditions
Gypsum tiles with aluminum or PVC coatings are resistant to relative humidity and can be used in humid environments or areas with utility pipes, provided temperature and humidity are controlled by air conditioning. Armstrong tiles are also produced in moisture-resistant models, making them suitable for humid spaces. However, uncoated gypsum tiles are more vulnerable to damage in humid environments and should be used with a protective coating.
Weight and Dead Load of the Building
Both ceiling types are lightweight and exert minimal pressure on the building’s structure. This feature is particularly beneficial in projects where reducing the dead load is essential. Modern false ceilings, due to the use of lightweight materials, are a more optimized option compared to traditional plaster or rabitz ceilings, and they increase the building’s earthquake resistance.
Maintenance and Repairs
In both systems, if any tiles become damaged, they can be easily removed and replaced. This reduces maintenance costs and extends the lifespan of the ceiling. Additionally, both types of false ceilings offer easy cleaning and the option to change the design or color of the ceiling as needed.
Cost of Installation and Economic Viability
Gypsum tile ceilings are cost-effective due to their quick installation, no need for painting, and affordable raw materials, thus reducing the overall installation costs. Armstrong ceilings, while also offering fast installation and easy setup, may vary in cost depending on the tile material chosen. In general, both systems are cost-effective and make large-scale projects feasible at a reasonable cost.
Environmental Compatibility
Gypsum tiles are 100% recyclable and made from non-toxic and organic materials, which is a key consideration for green and environmentally-friendly projects. Some Armstrong tiles are also recyclable, but this depends on the type of material chosen. Selecting environmentally-friendly tiles helps reduce the environmental impact of a project.
Earthquake Resistance and Safety
The grid structure of both gypsum and Armstrong false ceilings enhances the building's safety and earthquake resistance. These ceilings, due to their lightweight and standardized connections, offer high resistance to external forces and ensure the safety of buildings in large and sensitive projects.
Advantages and Limitations of Each System
Gypsum Tile False Ceilings
Advantages:
- Quick and easy installation without the need for traditional plastering
- Lightweight and reduced dead load on the building
- Ability to integrate hidden lighting and easy access to utilities
- Variety of designs, colors, and finishes
- Acoustic tiles available for high sound absorption
- Suitable moisture resistance (with proper coatings)
- 100% recyclable and environmentally-friendly
- Economically viable
- Resistant to rot, impact, and scratches
- Long lifespan
Limitations:
- Uncoated gypsum tiles are vulnerable in humid environments and may develop mold if humidity control is inadequate.
Armstrong False Ceilings
Advantages:
- Easy and fast tile installation without screws or joint compound
- Easy replacement of damaged tiles
- Availability of tiles in different materials (gypsum, mineral, metal, PVC, etc.)
- Suitable for diverse environments including offices, commercial spaces, and healthcare settings
- Option to install sound and thermal insulation layers in the ceiling cavity
- Customizable design and color options
- Moisture-resistant models available
- Cost-effective installation and easy maintenance
Limitations:
- Depending on the tile material, the final cost and technical characteristics can vary, and some tiles may not be environmentally recyclable.
Common Applications
Both types of false ceilings are used in office buildings, commercial spaces, residential properties, hospitals, stores, conference halls, recording studios, and even industrial spaces. The choice between the two systems depends on project requirements, environmental conditions, budget, and client preferences.
Conclusion
Choosing between gypsum tile false ceilings and Armstrong false ceilings requires a thorough analysis of the project’s needs, budget, environmental conditions, and aesthetic preferences. If you are looking for a ceiling with a variety of designs, high acoustic capabilities, fast installation, and environmental compatibility, gypsum tile ceilings are an ideal option. These ceilings not only provide aesthetic appeal but also offer good technical performance and are widely used in office, commercial, and residential projects.
On the other hand, if tile material variety and the ability to use mineral or metal tiles are essential, Armstrong ceilings could be a better choice. Both systems offer easy installation, easy access to utilities, tile replacement options, and low maintenance costs.
Ultimately, it is advisable to consult with specialists in this field before making a final choice, ensuring the best option for your project’s needs. Proper execution of these ceilings will not only enhance the beauty and functionality of the space but also improve the building's technical performance.
